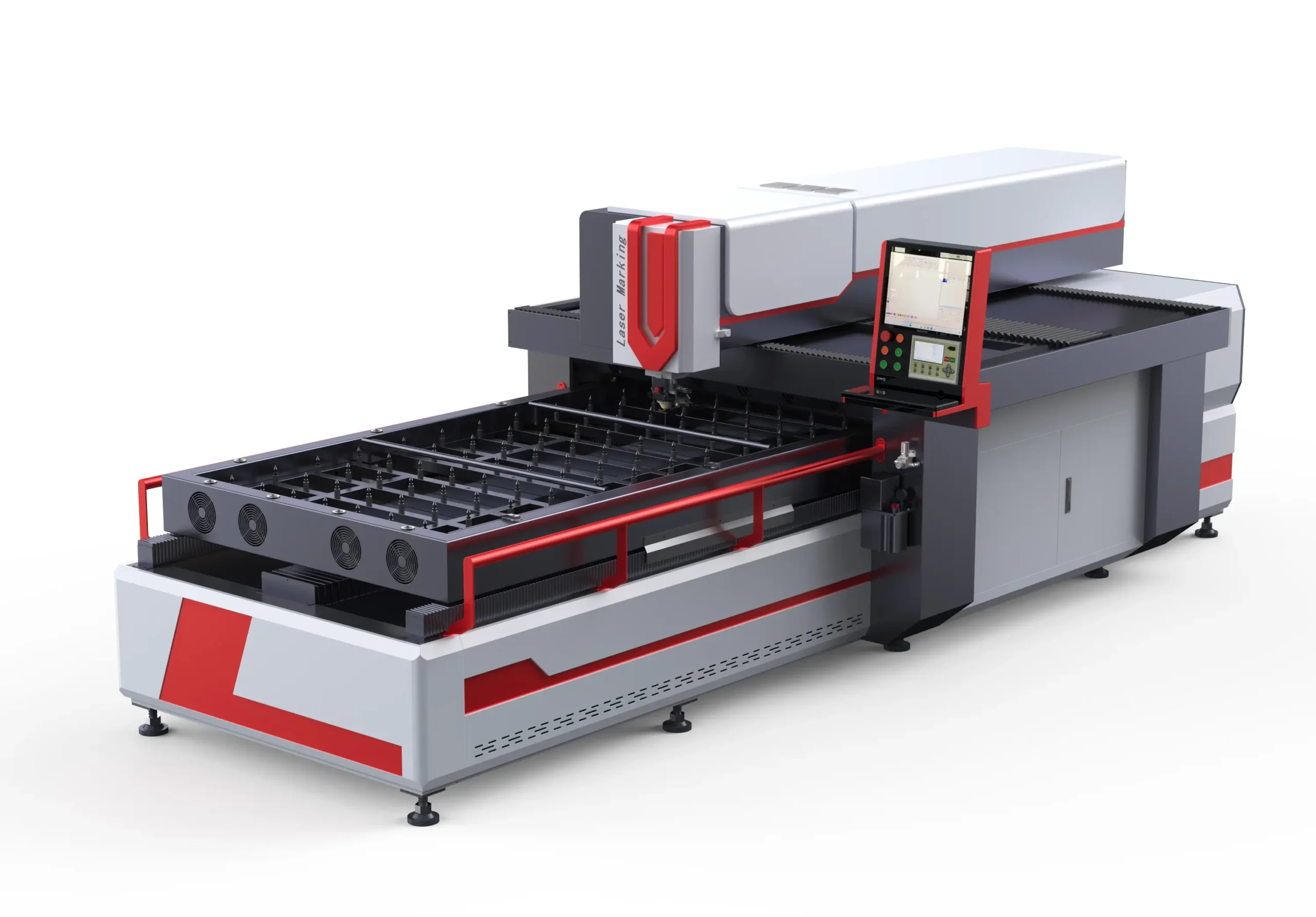

Model: AL-CT600-1218
Laser Path: fixed optical path
Power Option: 400W, 600W, 800W
Cutting Area: 1200mm × 1800mm (4ft × 6ft)

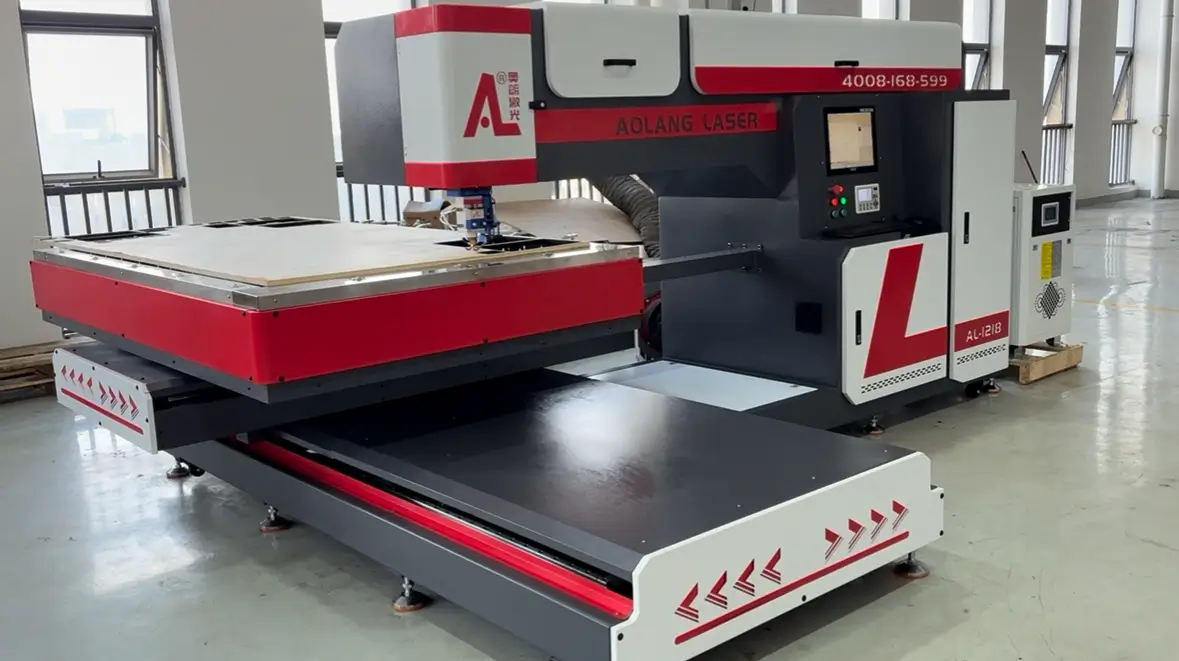

Cross table laser cutter adopts a single-mirror design that drastically shortens the laser transmission path, effectively eliminating cutting deviations caused by mirror vibration.

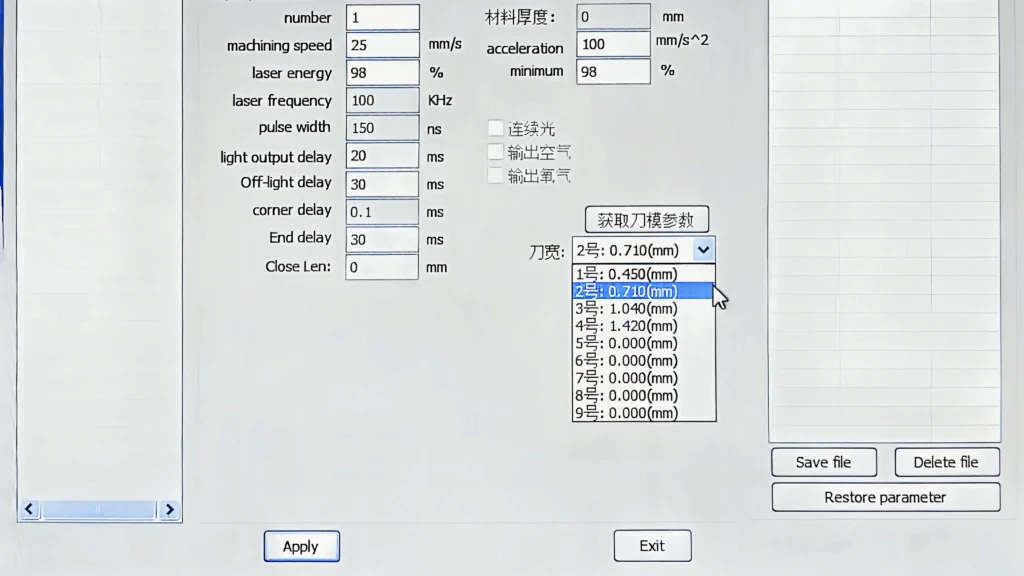

When you place 18mm, 20mm, or 22mm plywood on the worktable, our laser machine automatically adjusts to the material thickness and starts cutting quickly—eliminating the need for manual calibration and saving setup time. Secondly, if you need to create 1.3pt, 1.5pt, 2pt, 3pt, or 4pt slits on the same die board, you only need to set the desired parameters in the supporting software.

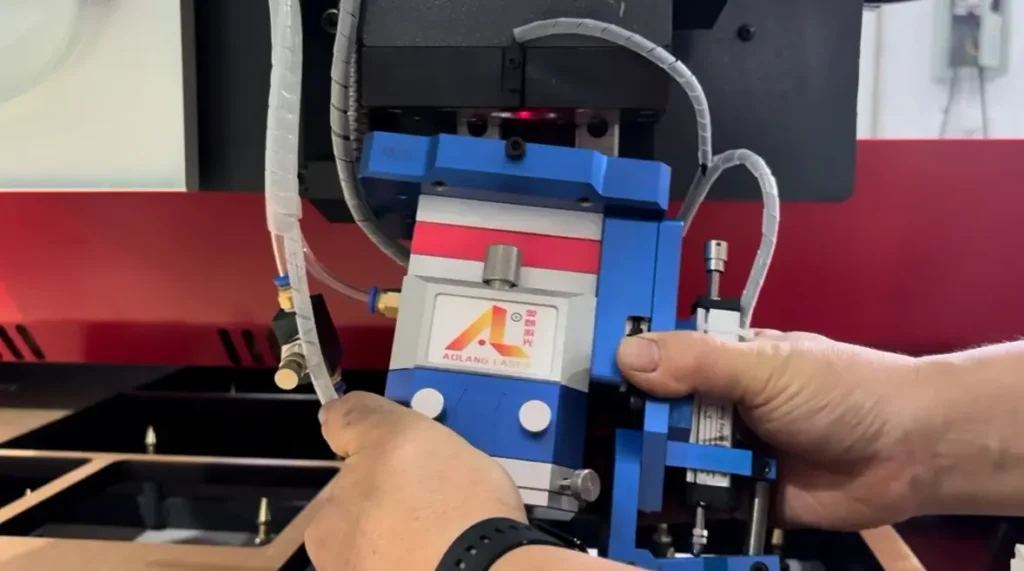

There are two sensors in the laser head for double protection. When you forget to bridge or operate incorrectly, the laser head will automatically stop and alarm.

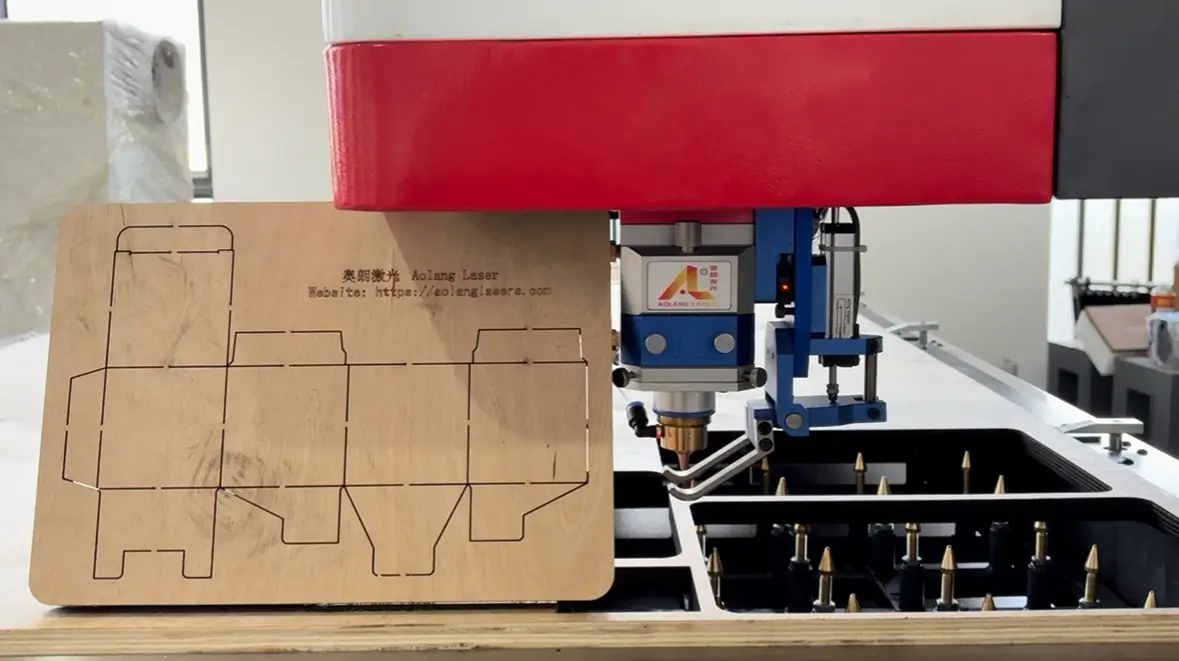

Aolang Laser uses an advanced CO₂ sealed laser tube, ensuring stable, consistent performance for wooden die board cutting. When processing 18mm plywood (a common material in laser dies production), our 600watts laser machine delivers a cutting speed of around 46 meters per hour.
| Model | AL-CT600-1218 |
| Machine Structure | Cross Table |
| Laser Path | Fixed Optical Path |
| Laser Source | CO₂ Sealed Laser Tube |
| Working Area | 1200mm × 1800mm (4ft × 6ft) |
| Cutting Precision | ±0.05mm |
| Cutting Depth | ≤25mm |
| Blade Thickness | 0.45mm (1.3pt), 0.53mm (1.5pt), 0.71mm (2pt), 1.07mm (3pt), 1.42mm (4pt), etc. |
| Cutting Speed | Approx. 36–46 m/h (for 18mm plywood) |
| Operating Temperature | 0–45°C |
| Power Supply | Single-phase 220V±10%, 50Hz (standard) |
| Numerical Control Panel | LCD Screen with Light-Touch Key Panel |
| Graphic Format | DXF, PLT, BMP, JPG, GIF, TIF, CDR, AI |
| Drive Type | Guide Rails & Ball Screws |
| Cooling Type | Water Cooling (use pure water; add antifreeze in winter) |
| Gross Power | 5kW |
| Consumables | Laser Tube, Lens, Reflective Mirror, Output Mirror |
| Assistant Equipment (Free) | Water Chiller, Industrial Blower, Computer |
| Machine Size (Stand-by) | 4200mm × 4500mm × 1600mm |
| Machine Size (Working) | 5000mm × 5000mm × 1600mm |
| Gross Weight | 2200kg |
We start with 1-on-1 technical guidance to pick the right machine like a gantry type or cross table model—based on your materials and daily output. Need tweaks? We can customize the working area or add your logo. And before you order, test it for free: we cut your materials to prove ±0.05mm precision and speed.
You’ll never wait in the dark. We send real-time production updates with photos or videos and a tracking number so you know when your machine arrives. Once it’s there, our engineers install and calibrate it—up and running in 1–2 days.
Rest easy with a 1-year machine warranty excluding consumables like mirrors and lenses. Need parts? 5–7 working days fast ship. For issues, we offer 24-hour remote help; if that’s not enough, on-site repairs in 3–7 days for major markets.
For your plywood laser cutting machine, we use protective heat-sealed stretch film for inner protection and standard plywood case for outer packaging to ensure safe delivery—from our factory to your workshop, even for long-distance sea shipping.
Machine Cleaning
Applying Rust-Proof Oil & Paint
Stretch Film Wrapping
Waterproof Bag Packaging
Plywood Case Packaging
Laser Machine Loading
